2018 Latest Design Convection Oven Electric - HJ-CPX400 Spring roll sheet production line – Hanjue Precision Detail:


Product

Technical Instruction

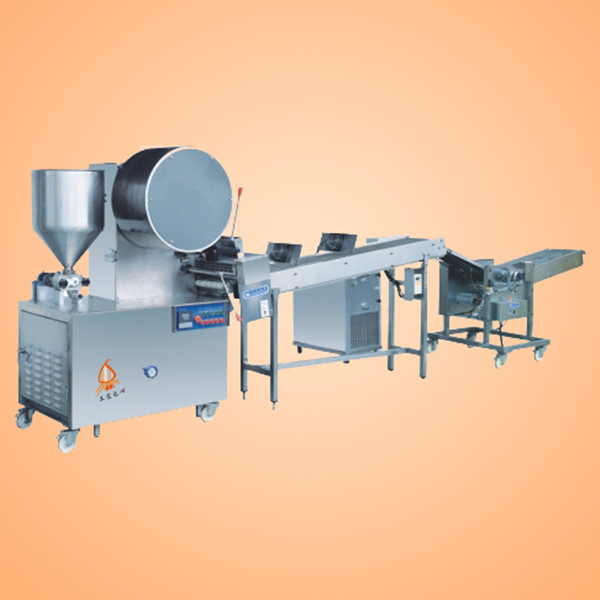

Spring roll sheet making machine

(春卷制皮机)

1. Model: HJ-CPX400-62. Sheet width: 375-400mm

3. Sheet thickness: 0.3~2mm

4. Heating drum diameter: 600mm

5. Power: 24KW, 380V 3 phases

(add transformer to 110V)

6. Heating mode: heating plates

7. Configuration:

①sheet making machine

②cooling conveyor belt

③cutting machine (adjustable)

④counter (adjustable)

⑤delivery arrangement machine

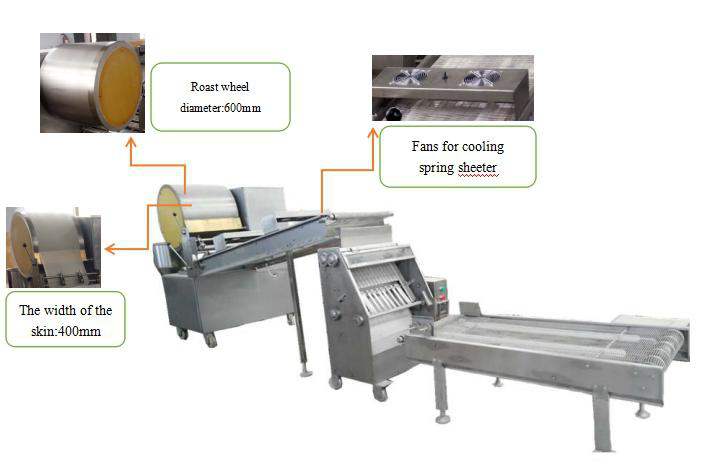

1.Main parts


Drum, Cooling Conveyor, Cutter, Array equipment.

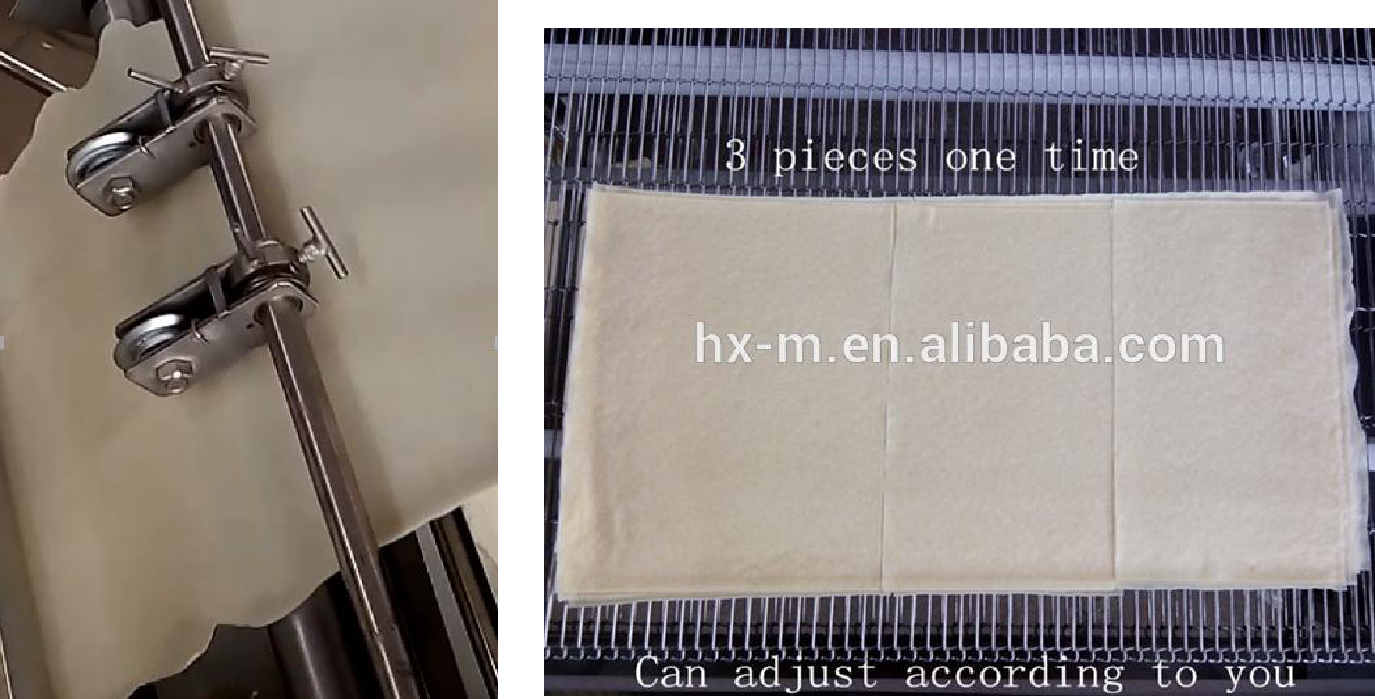

 Add wheel cutter on machine to change the skin of width and capacity.

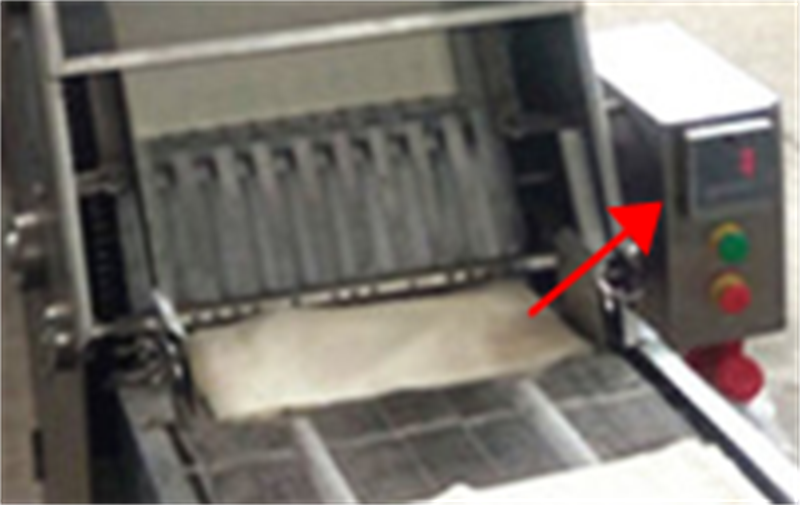

Counter


2.. HJ-CPX400 Instruction:

The main device equipped on this machine:

Wrapper making machine

Vertical cutting device

Cooling conveyor belt

Cutting machine

Conveyor arranging machine

Function:

The production line may manufacturer thickness 0.3-2 millimeter spring roll skin, the curry cutide, the egg skin, and may manufacturer other laminated food, suits in the food products factory, the hotel, the fast-food restaurant and so on.

- Principle and process:

Principle: firstly, make the liquid according to the liquid manufacturer craft; after the liquid is heated and roasted by the round heating roasting, it becomes the fixed thickness the spring roll skin or other laminated food.

Process: Firstly, put the prepared flour batter into barrel ; secondly, start the thick liquid pump to deliver the surface thick to the spray nozzle place when the round heating roasts after 160℃; then operate the coupling operating lever, that causes the surface thick liquid adherency to roast the round circular arc surface, along with roasts when the wheel has revolved 270-300 degrees angles, the surface thick liquid curing, automatically separate with roasts the whee, so forms the fixed thickness the spring roll skin, after the cutting off machine, become the block, then folds for the sale, or curls a package of spring roll immediately.

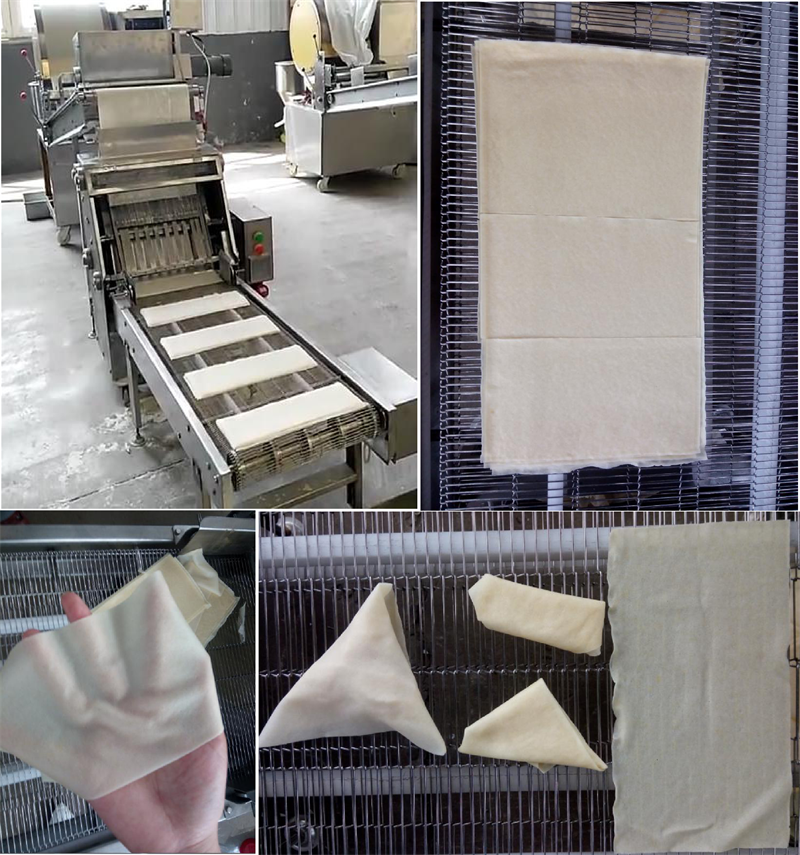

3. Can adjust different size, shape:


Howtomakespringroll:

HowtomakeSamosa:


Welcome to our factory to test this machine by yourself !!!

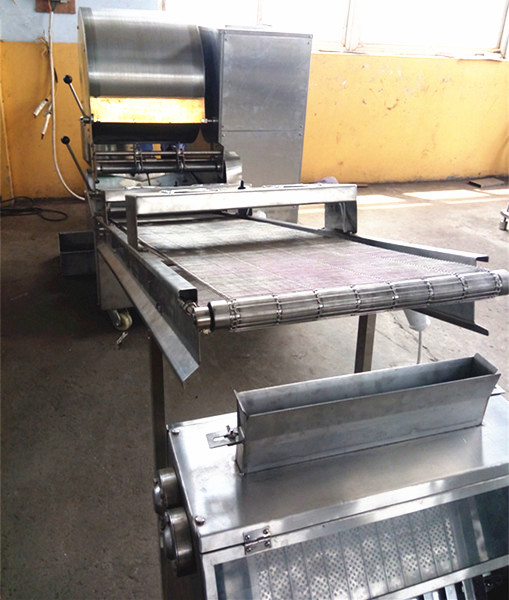

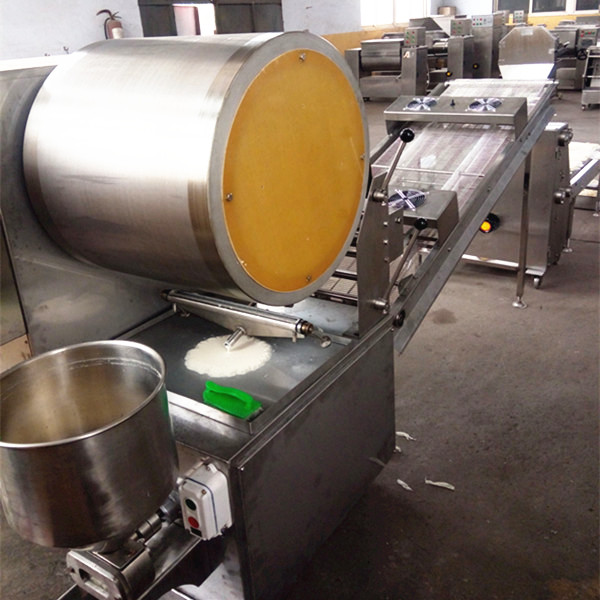

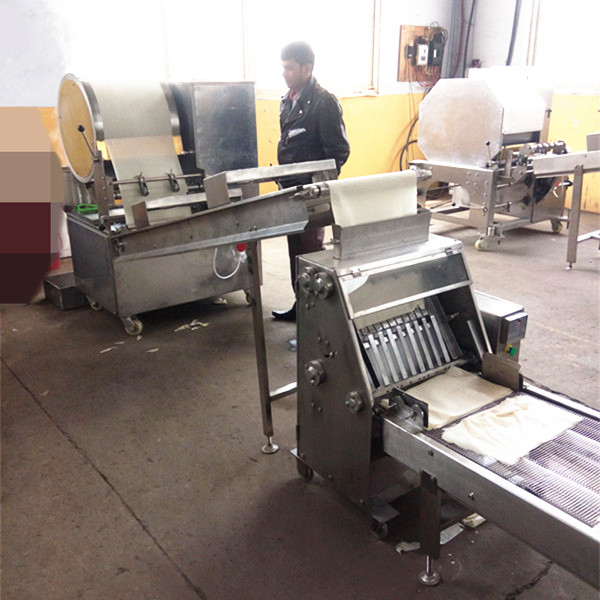

Product detail pictures:

2018 Latest Design Convection Oven Electric -
 HJ-CPX400 Spring roll sheet production line – Hanjue Precision detail pictures
